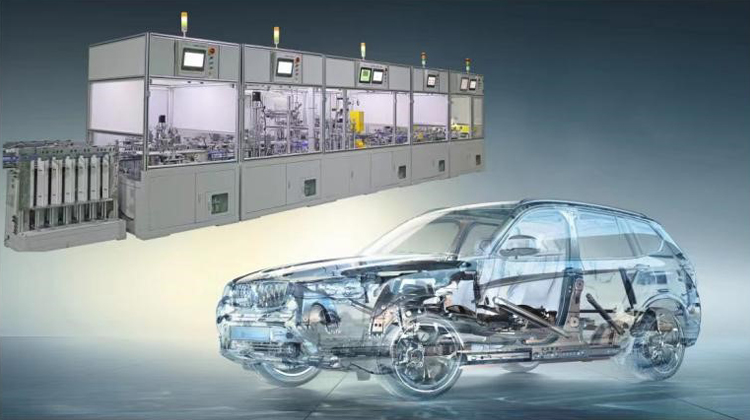

The assembly and testing line for new energy vehicle motor bearings is aimed at developing and optimizing the design of key bearings for new energy vehicle drive motors. On the basis of meeting the requirements of automated production, upgrade the key bearing assembly process, increase the number of matching warehouses, and add the multi angle rotation measurement function of groove diameter to meet the research needs of key service performance parameters of bearings.

• Applications
  Quality control of automobile manufacturing enterprises
  Automobile maintenance or testing institutions
  Construction of research institute laboratories
• Equipment characteristics
  High quality and efficiency, fully automated operations
  The number of silos can be increased to 16 pairs and 16 on conventional equipment, with 10 steel ball silos to meet user pairing requirements to the maximum extent. The number of silos can be set to shield some silos
  The fitting rules and silo tolerances can be set by the user to meet the research needs of fitting parameters

• Function Description
  The entire line adopts a linear conveying method for various assembly and testing processes
  The inner and outer rings of the bearing, as well as the upper and lower retainers, are manually stacked and placed at designated workstations, and the equipment achieves semi-automatic feeding
  Can achieve detection of bearing outer dimensions: inner diameter, outer diameter, and end height
  Can achieve key dimensions of bearings: inner and outer ring groove diameter detection, and automatically pair and fit according to user set fitting rules
  Can achieve bearing flexibility detection, clearance detection, and vibration detection
  Customizable according to customer needs
• Parameters
  Drive mode: pneumatic drive, motor drive
  Operating voltage: Except for the vibration measuring equipment 380V, all other equipment is 220V
  Air pressure: 0.4-0.5Mpa
  Scope of application: 6210 bearings or similar bearings of the same type and specifications (adjustment tooling)
  Dimensional measurement resolution accuracy: 0.1um, 10 repetitions accuracy: 1.5pm.
